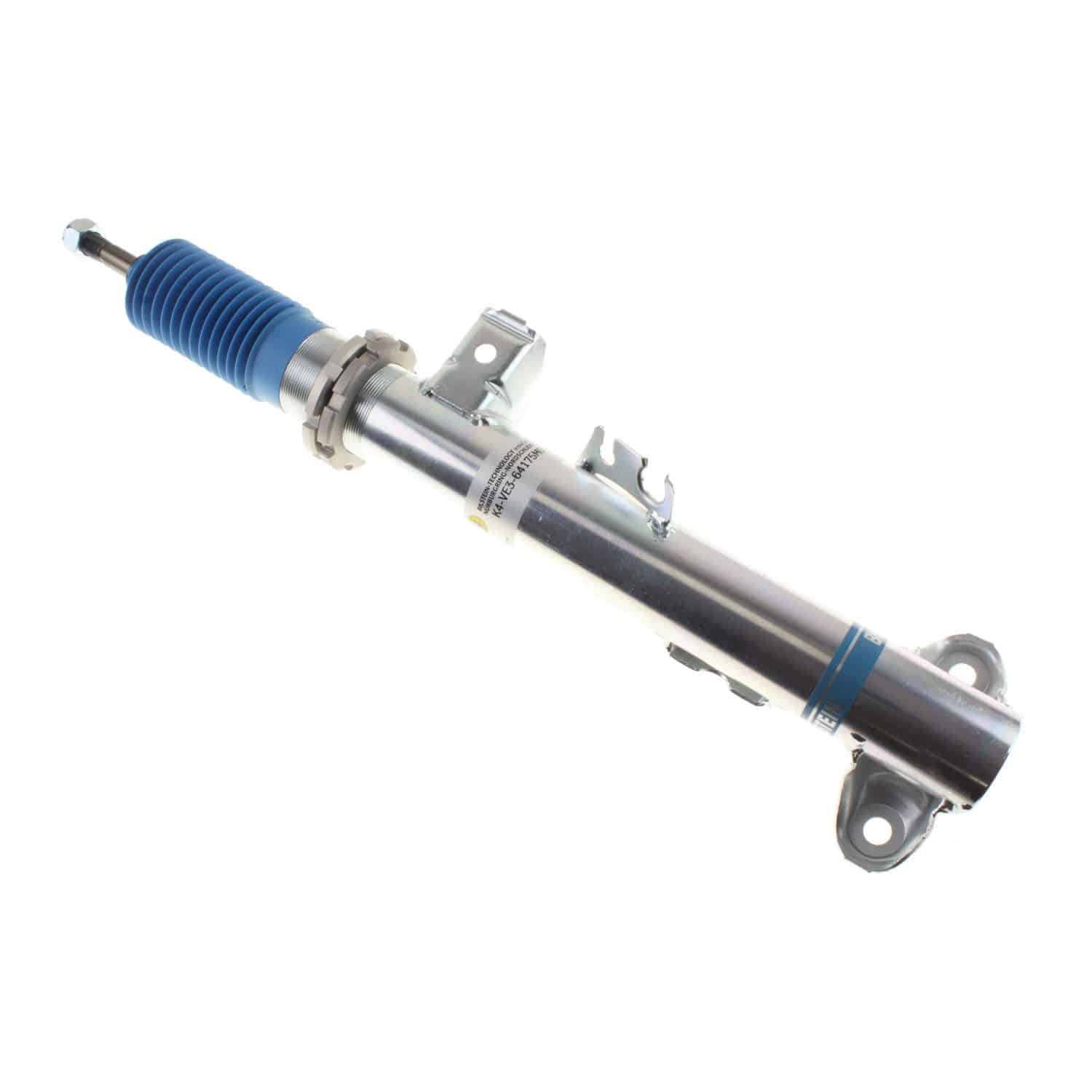

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
Additional Attributes:
GTIN: 00651860667676
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body (Coilover)
Body Material: Steel
Boot Included: Blue Bellows
Collapsed Length (IN): 16.57
Collapsed Length (MM): 521.5
Compression @0.52m/s: 3000
Extended Length (IN): 20.53
Extended Length (MM): 521.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Special
PartType: Shocks / Struts
Piston Diameter: 36mm
Piston Type: Linear
Position: Front Right
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 3000
Segment: Motorsports
Series: Motorsports
Spring Hardware: N/A
Spring Max Travel (IN): 3.96
Spring Seat Included: Yes
Upper Mount Type: Stem
Valving Identifier: N/A
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 6.1000 x 6.1000 inches
Weight: 7.9400 PG
