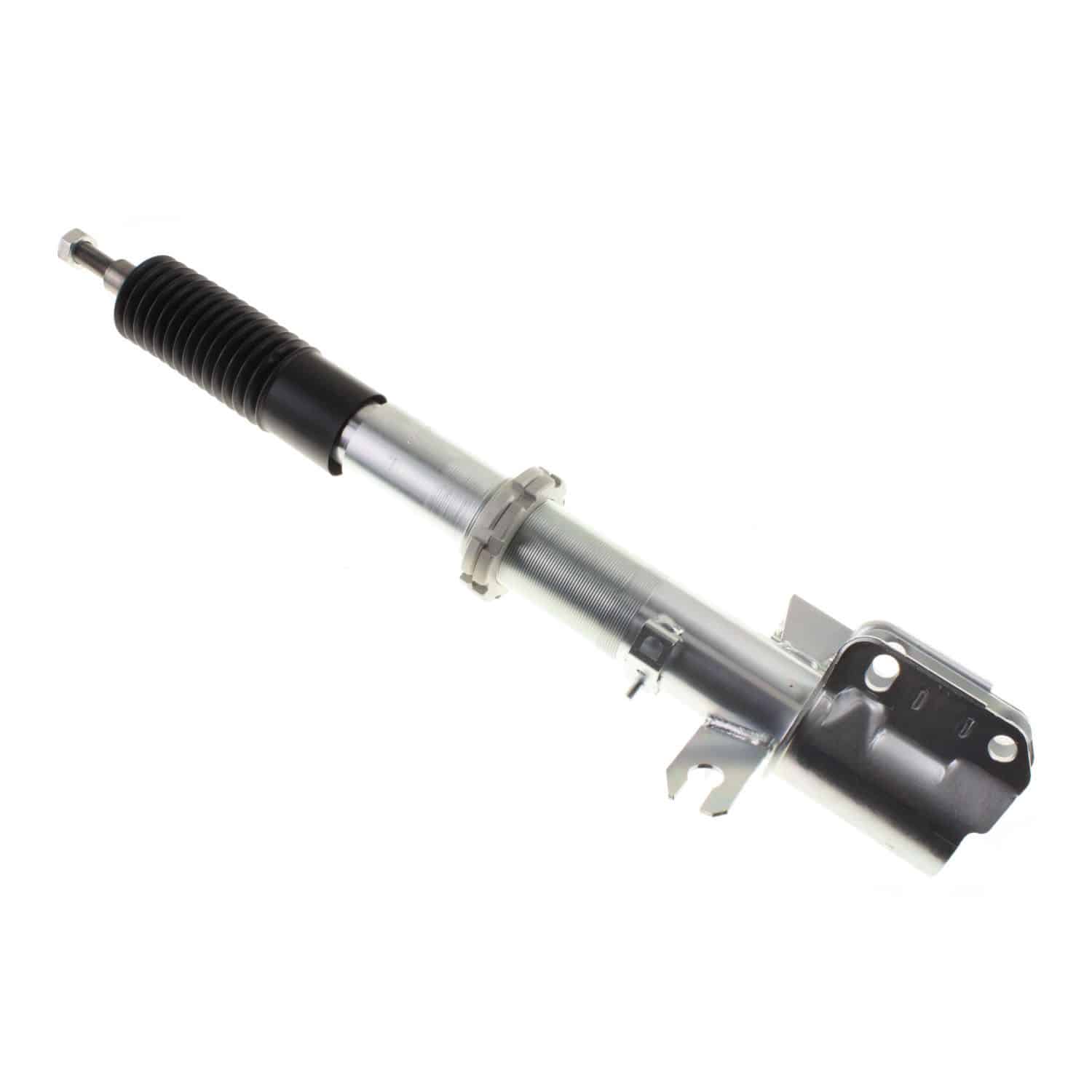

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
Additional Attributes:
GTIN: 00651860534343
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body (Coilover)
Body Material: Steel
Boot Included: Black Bellows
Collapsed Length (IN): 16.61
Collapsed Length (MM): 422.0
Extended Length (IN): 21.52
Extended Length (MM): 546.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Bracket
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Position: Front
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Segment: Motorsports
Series: Motorsports
Spring Hardware: N/A
Spring Max Travel (IN): 4.90
Spring Seat Included: Yes
Upper Mount Type: Stem
Valving Identifier: N/A
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 6.1000 x 6.1000 inches
Weight: 10.1000 PG
USA SDS_Shock_Air Spring_V2_EN
