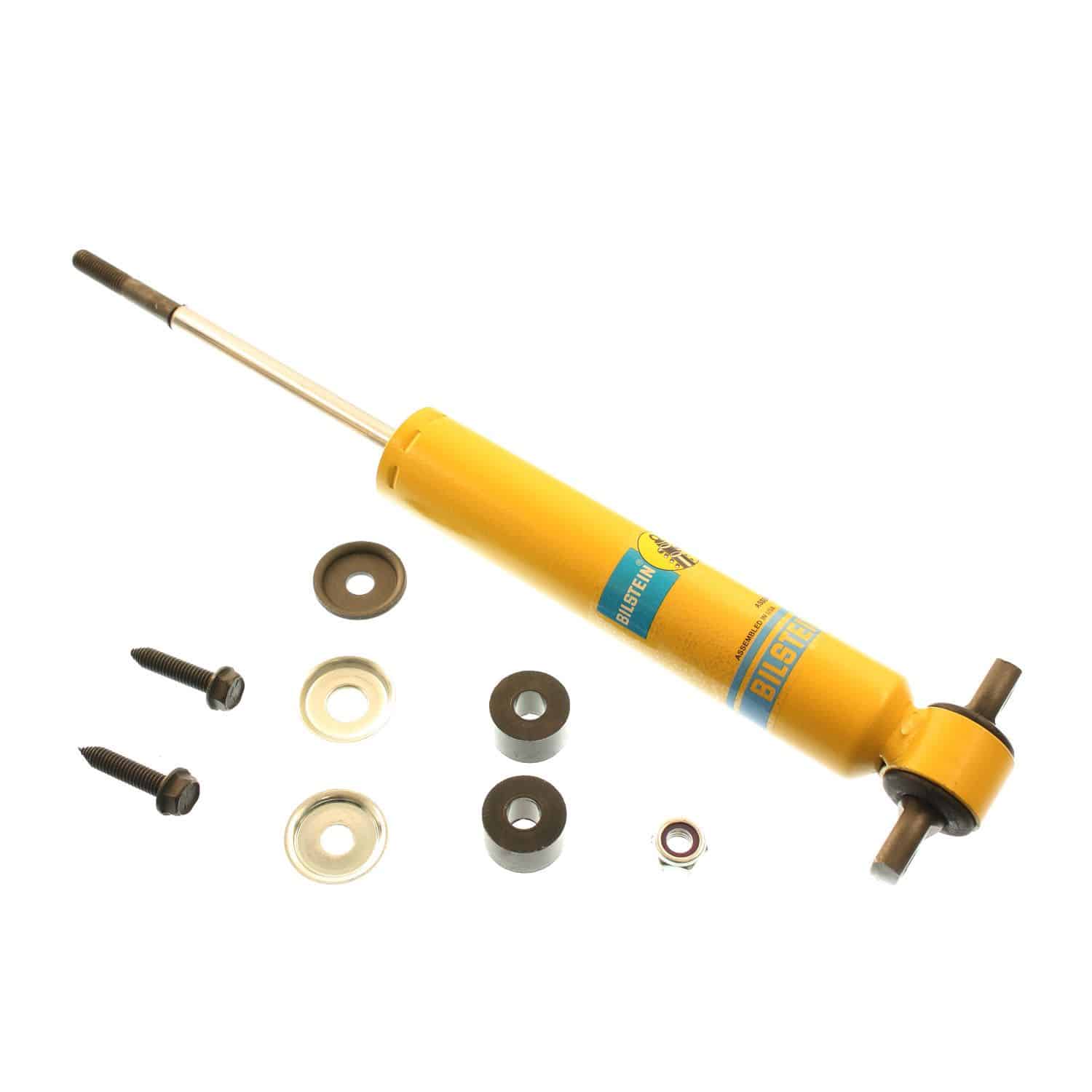

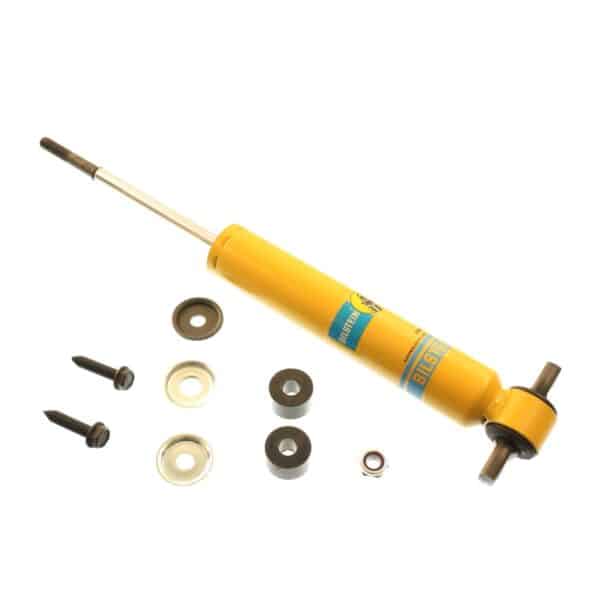

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Additional Attributes:
GTIN: 00651860635194
Adjustable Damping: Non-Adjustable
Body Design: Stock Mount Smooth Body
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 8.73
Collapsed Length (MM): 221.8
Compression @0.26m/s: 920
Extended Length (IN): 13.46
Extended Length (MM): 342.0
Finish: Yellow Paint
Internal Design: Monotube
Lower Mount Type: Bar Pin
PartType: Shocks / Struts
Piston Diameter: 36mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.26m/s: 585
Segment: Motorsports
Series: AK Series
Spring Max Travel (IN): 4.73
Spring Seat Included: No
Upper Mount Type: Stem
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 22.4500 x 2.9500 x 2.9500 inches
Weight: 3.0900 PG
USA SDS_Shock_Air Spring_V2_EN
