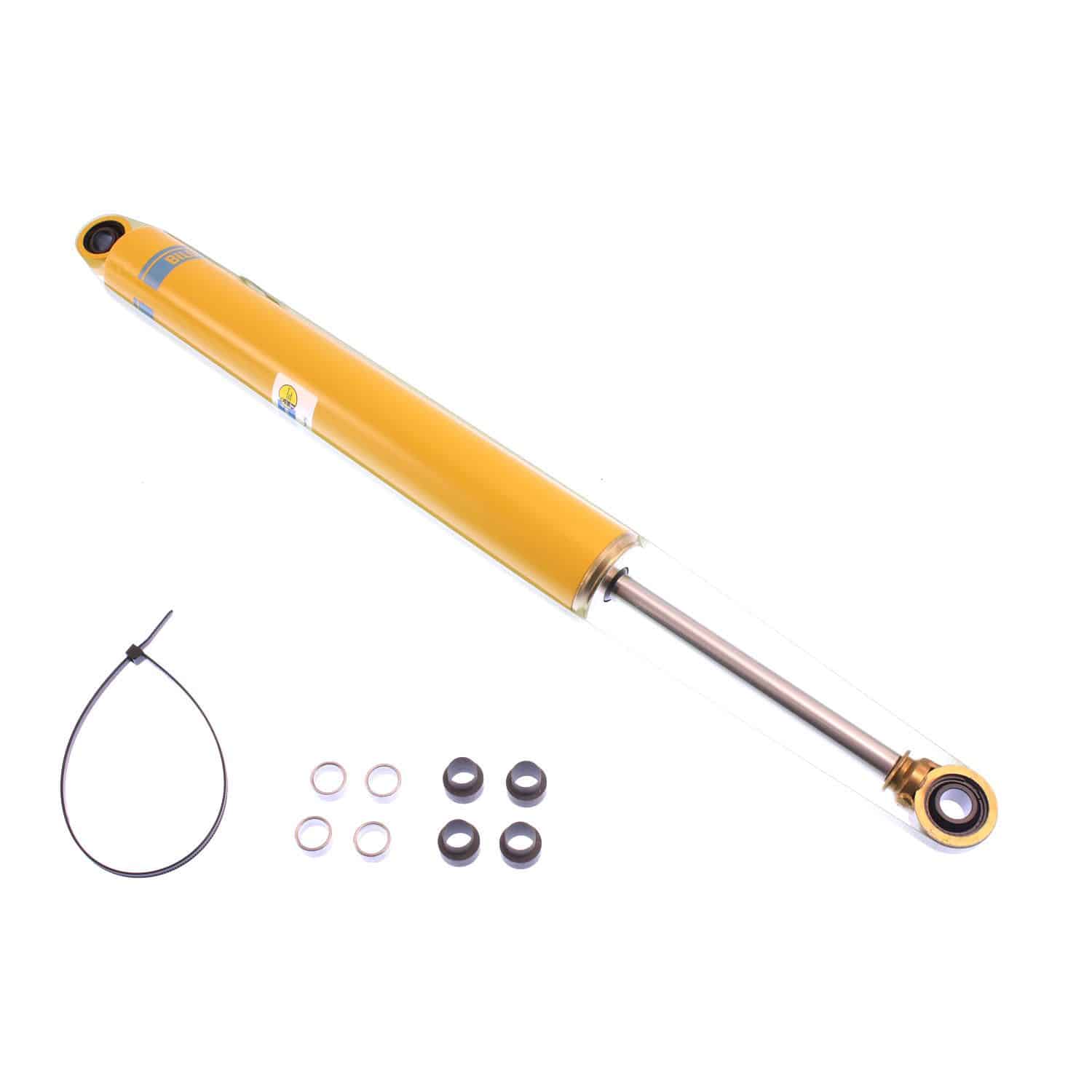

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.
Additional Attributes:
GTIN: 00651860468853
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 16.06
Collapsed Length (IN) Rounded: 16
Collapsed Length (MM): 407.9
Compression @0.52m/s: 794
Extended Length (IN): 25.73
Extended Length (IN) Rounded: 26
Extended Length (MM): 653.5
Finish: Yellow Paint
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1912
Reservoir: No
Segment: Motorsports
Series: M 7100 Classic
Spring Max Travel (IN): 9.67
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 2.9500 x 2.9500 inches
Weight: 4.6300 PG
