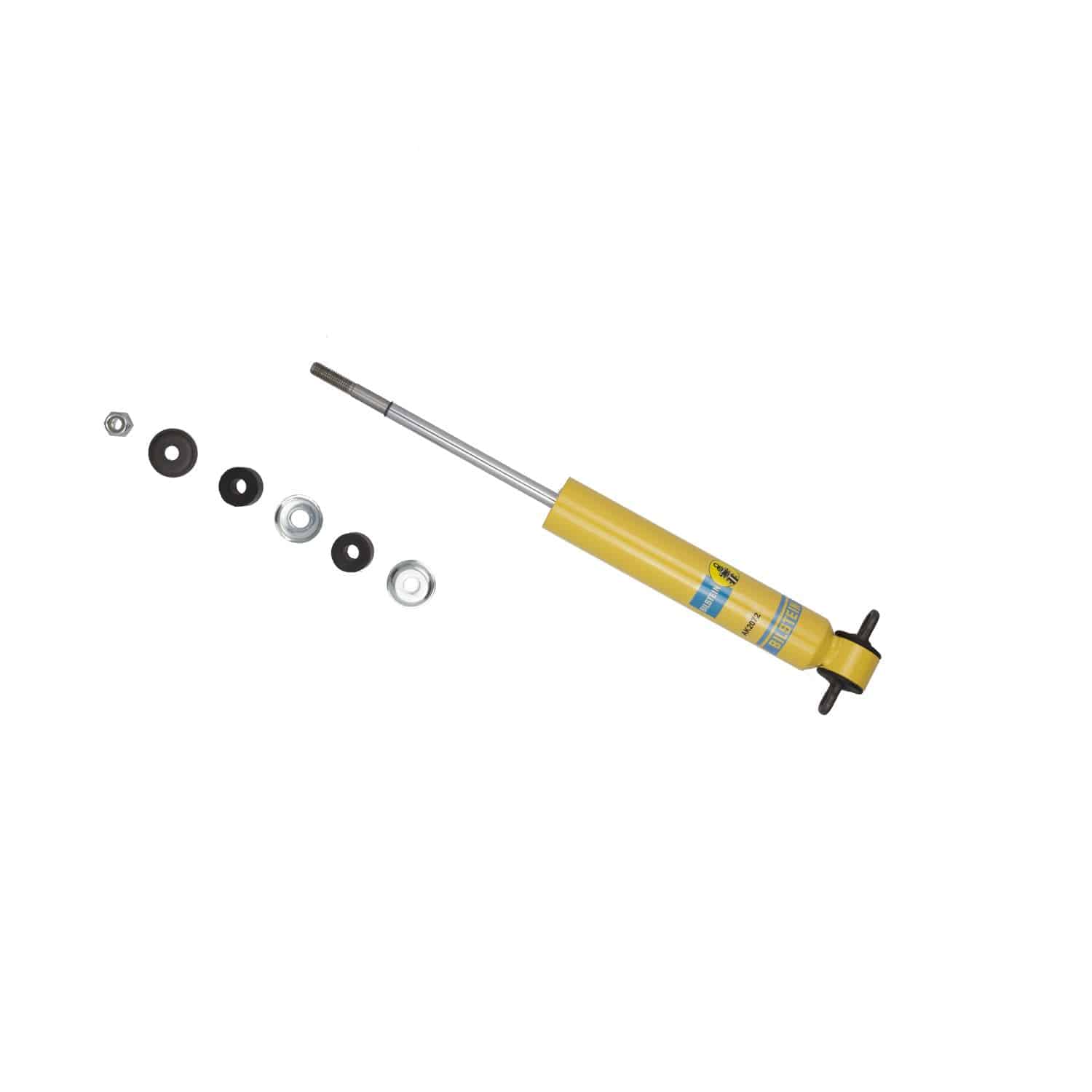

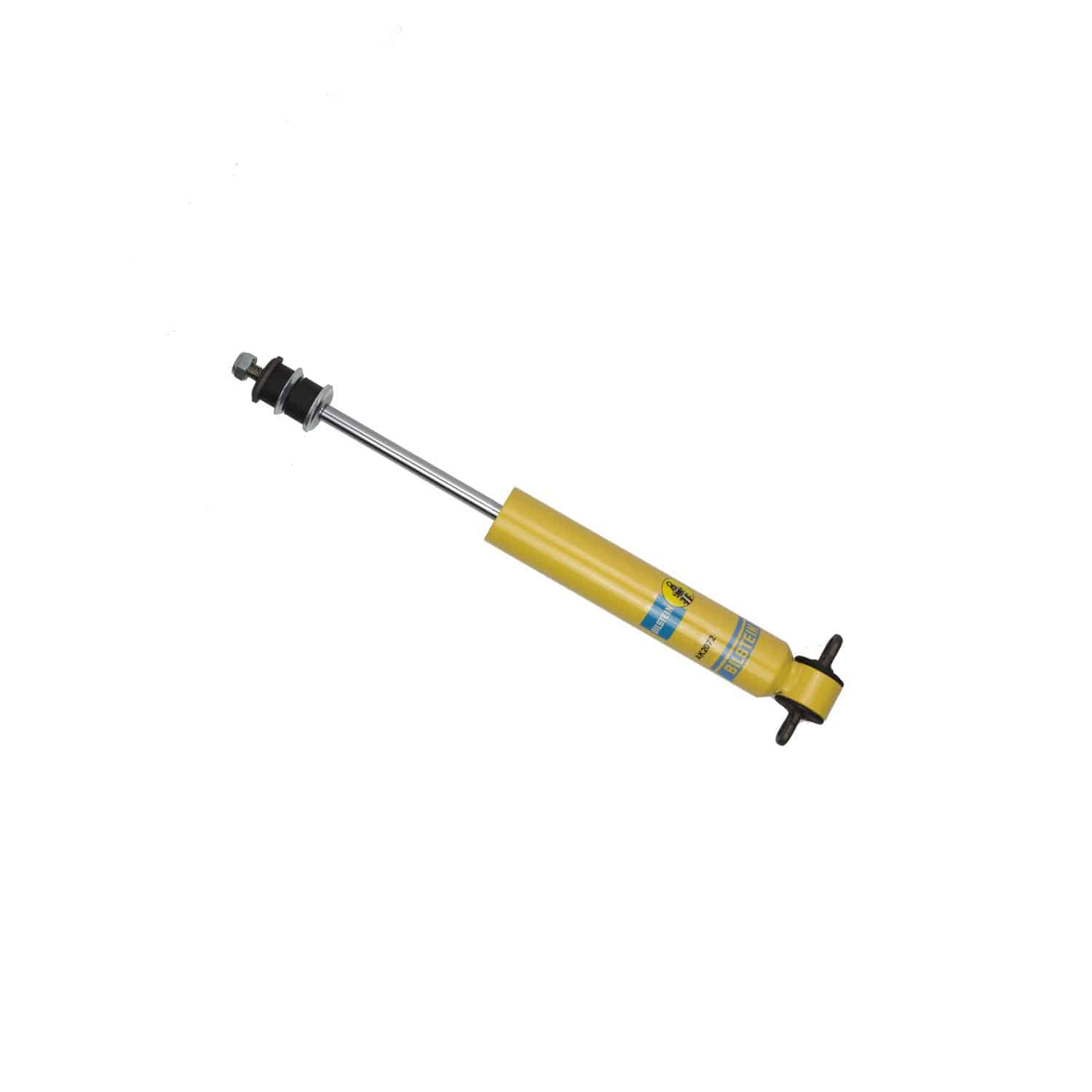

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Additional Attributes:
GTIN: 00790832520721
Adjustable Damping: Non-Adjustable
Body Design: Stock Mount Smooth Body
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 9.06
Collapsed Length (MM): 230.0
Compression @0.26m/s: 935
Compression @0.52m/s: 1225
Extended Length (IN): 14.01
Extended Length (MM): 355.8
Finish: Yellow Paint
Internal Design: Monotube
Lower Mount Type: Bar Pin
PartType: Shocks / Struts
Piston Diameter: 36mm
Piston Type: Linear
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.26m/s: 1520
Rebound @0.52m/s: 3000
Segment: Motorsports
Series: AK Series
Spring Max Travel (IN): 5.09
Spring Seat Included: No
Upper Mount Type: Stem
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 22.4500 x 2.9500 x 2.9500 inches
Weight: 2.4900 PG
