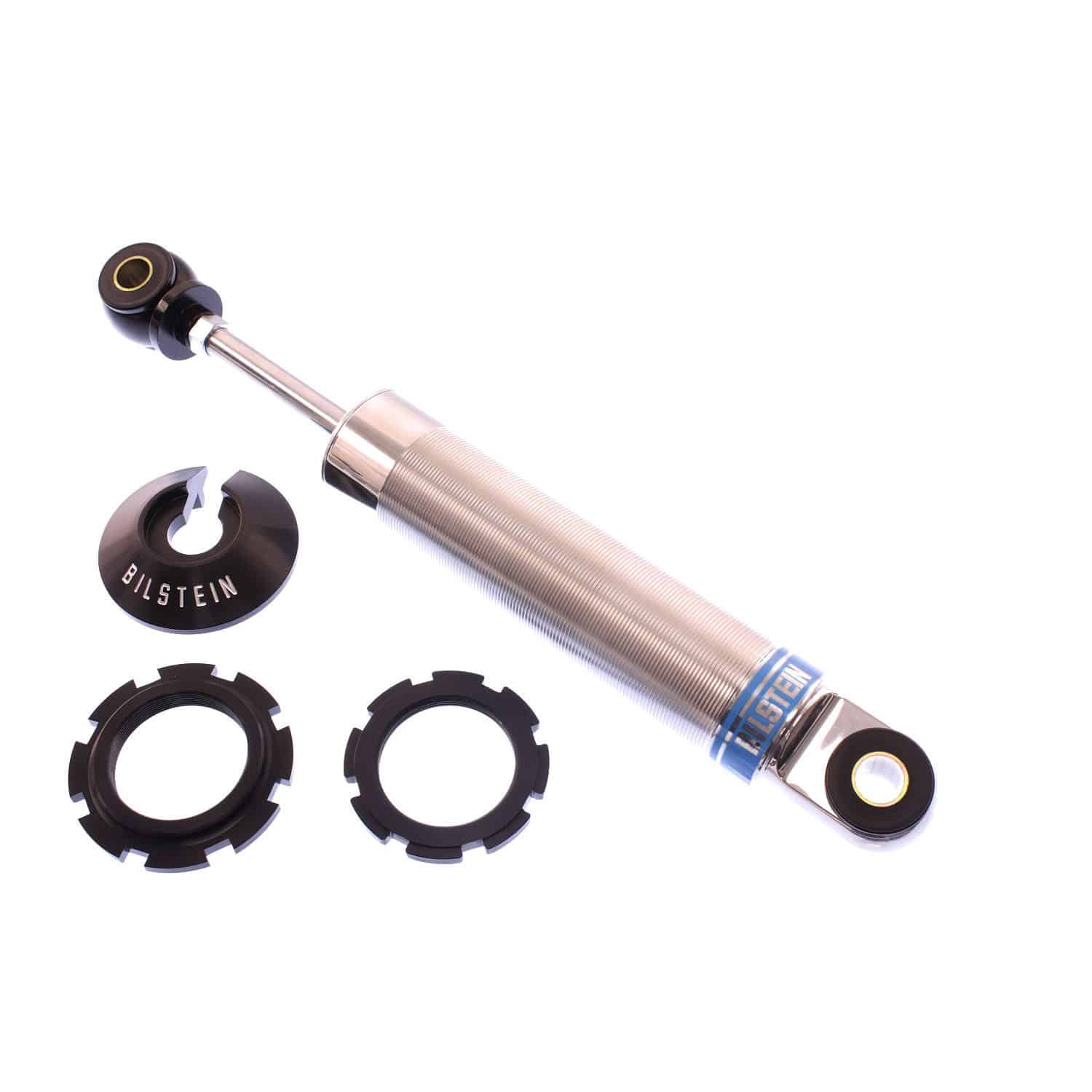

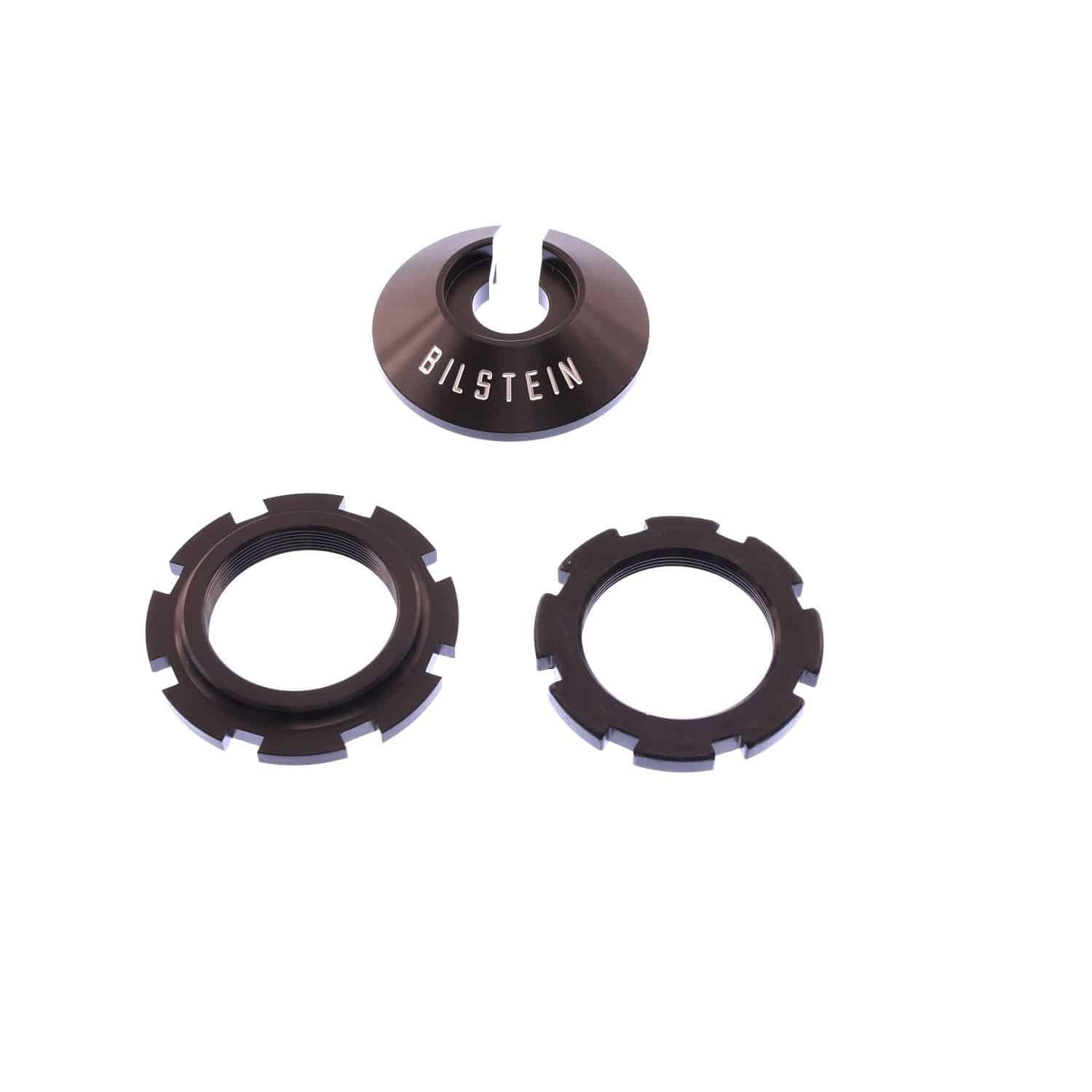

Bilstein CA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.
Additional Attributes:
GTIN: 00790832515499
Boot Included: No
Collapsed Length (IN): 11.67
Collapsed Length (MM): 296.5
Compression @0.52m/s: 640
Extended Length (IN): 15.16
Extended Length (MM): 385.0
Finish: Polished Aluminum
Internal Design: Monotube
Lower Mount Type: Eye 15.9mm
PartType: Shocks / Struts
Position: Front
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1750
Recommended Mounting Length (IN): 12.50
Segment: Tuning
Series: CA4 Series
Spring Seat Included: Yes
Upper Mount Type: Eye 15.9mm
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 19.7500 x 5.2500 x 2.7500 inches
Weight: 4.2100 PG
USA SDS_Shock_Air Spring_V2_EN
