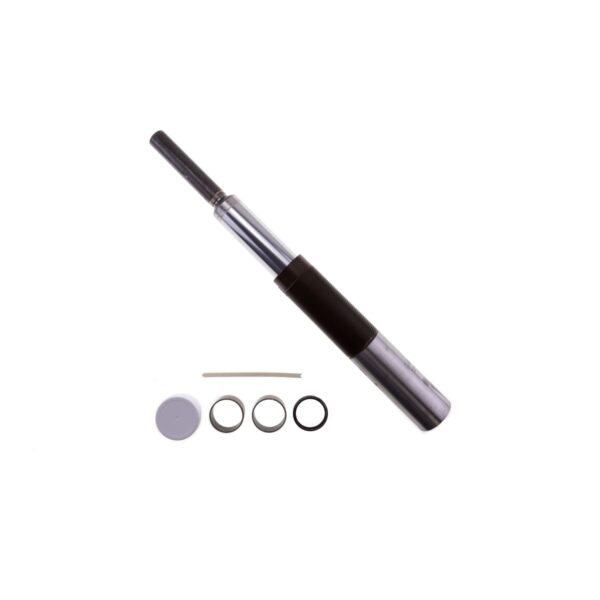

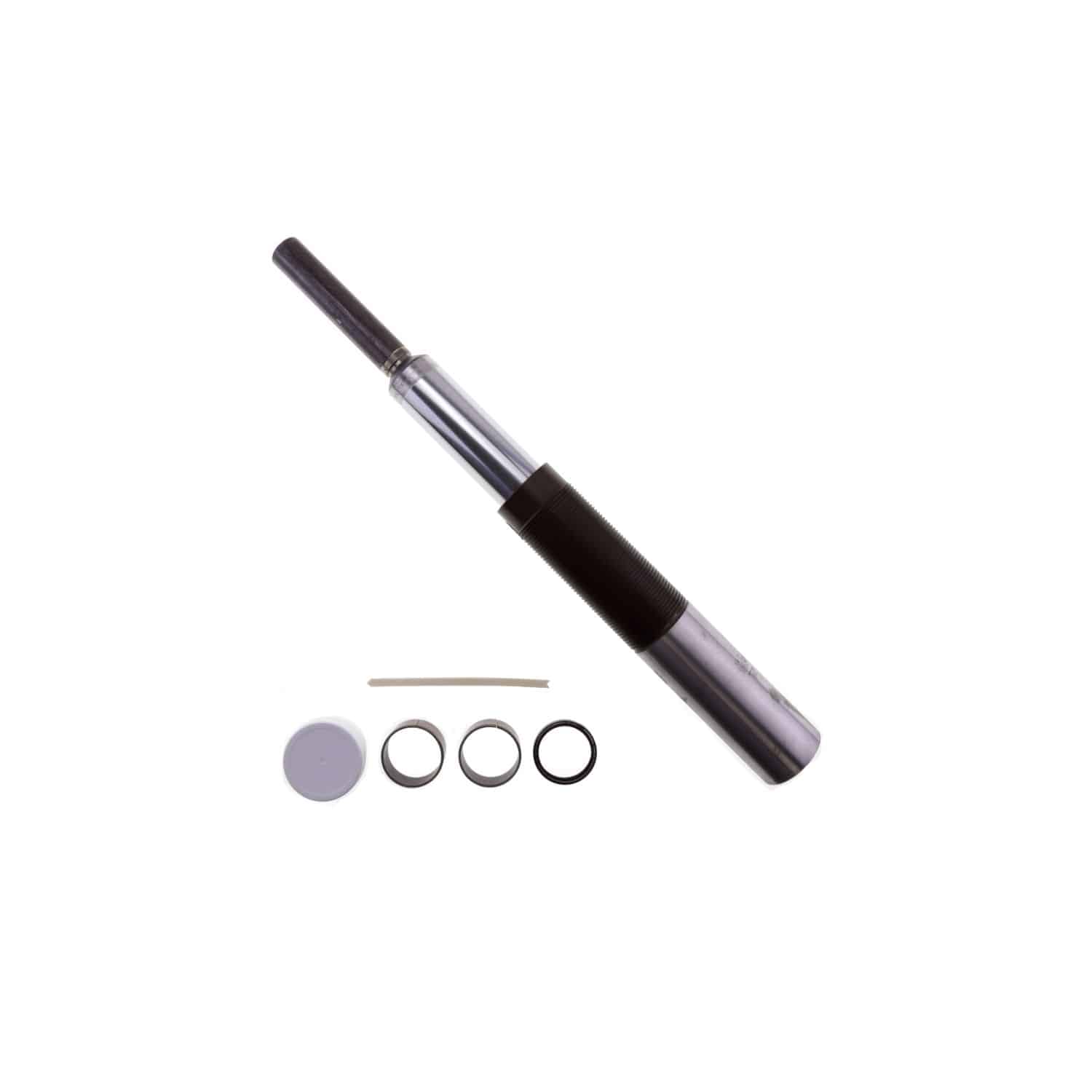

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.
Additional Attributes:
GTIN: 00651860705637
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 10.34
Collapsed Length (MM): 262.6
Compression @0.52m/s: 960
Extended Length (IN): 14.94
Extended Length (MM): 379.4
Finish: Olive-Drab Zinc
Internal Design: Monotube
Lower Mount Type: Housing
PartType: Shocks / Struts
Piston Diameter: 36mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1735
Segment: Motorsports
Series: Universal Motorsports Strut
Spring Hardware: N/A
Spring Max Travel (IN): 4.60
Spring Seat Included: No
Upper Mount Type: Stem
Valving Identifier: 180/100
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 4.1500 x 4.1500 inches
Weight: 6.9400 PG
USA SDS_Shock_Air Spring_V2_EN
