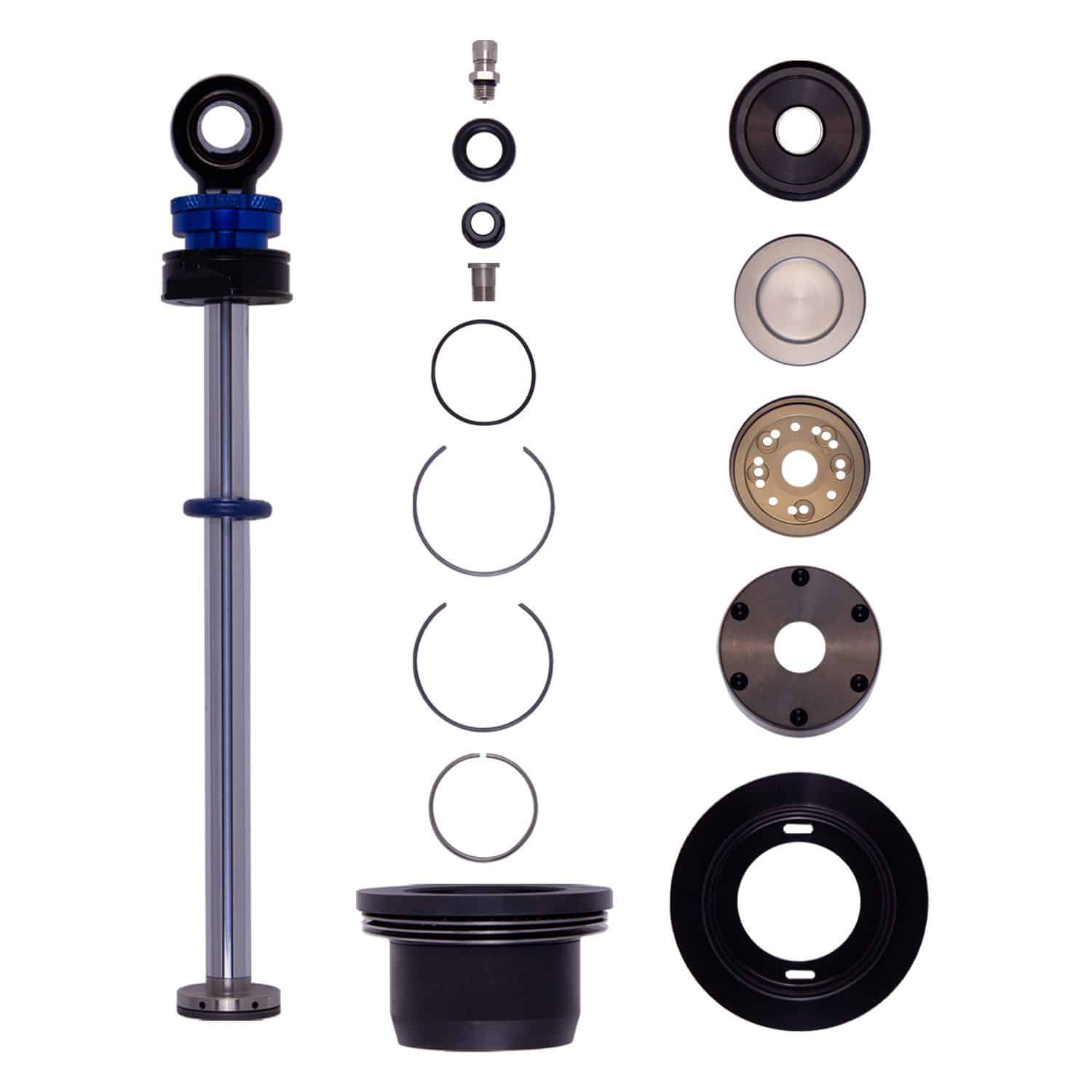

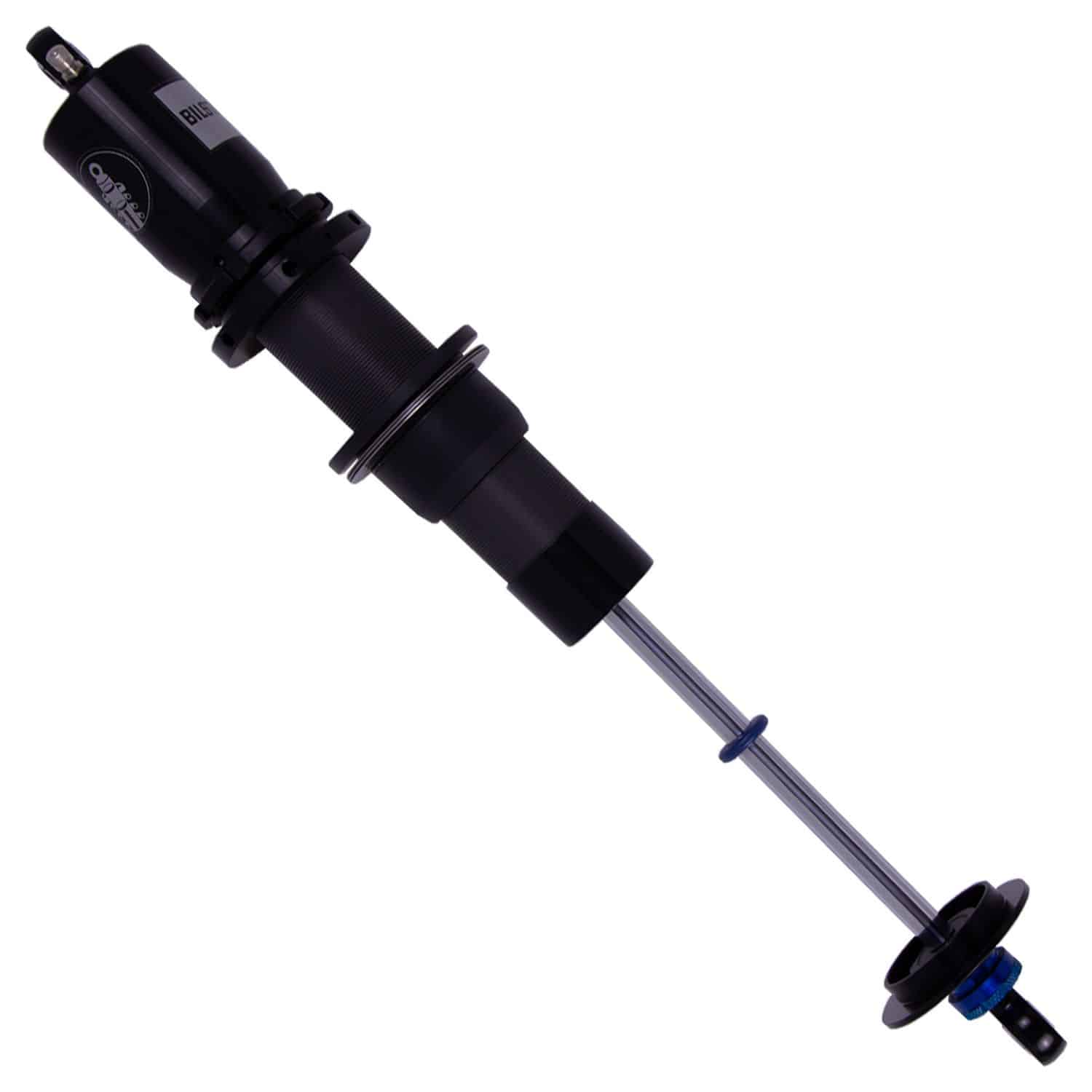

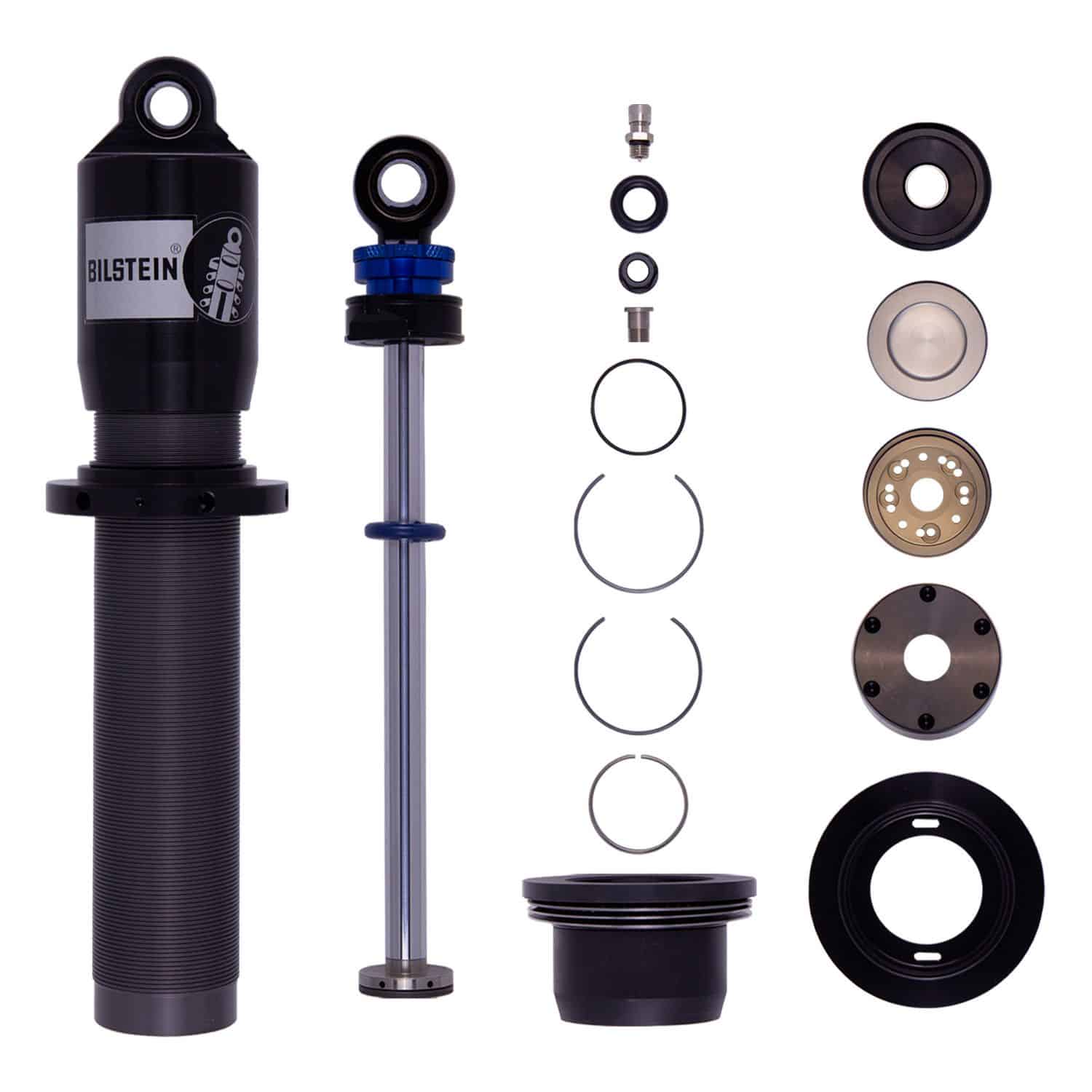

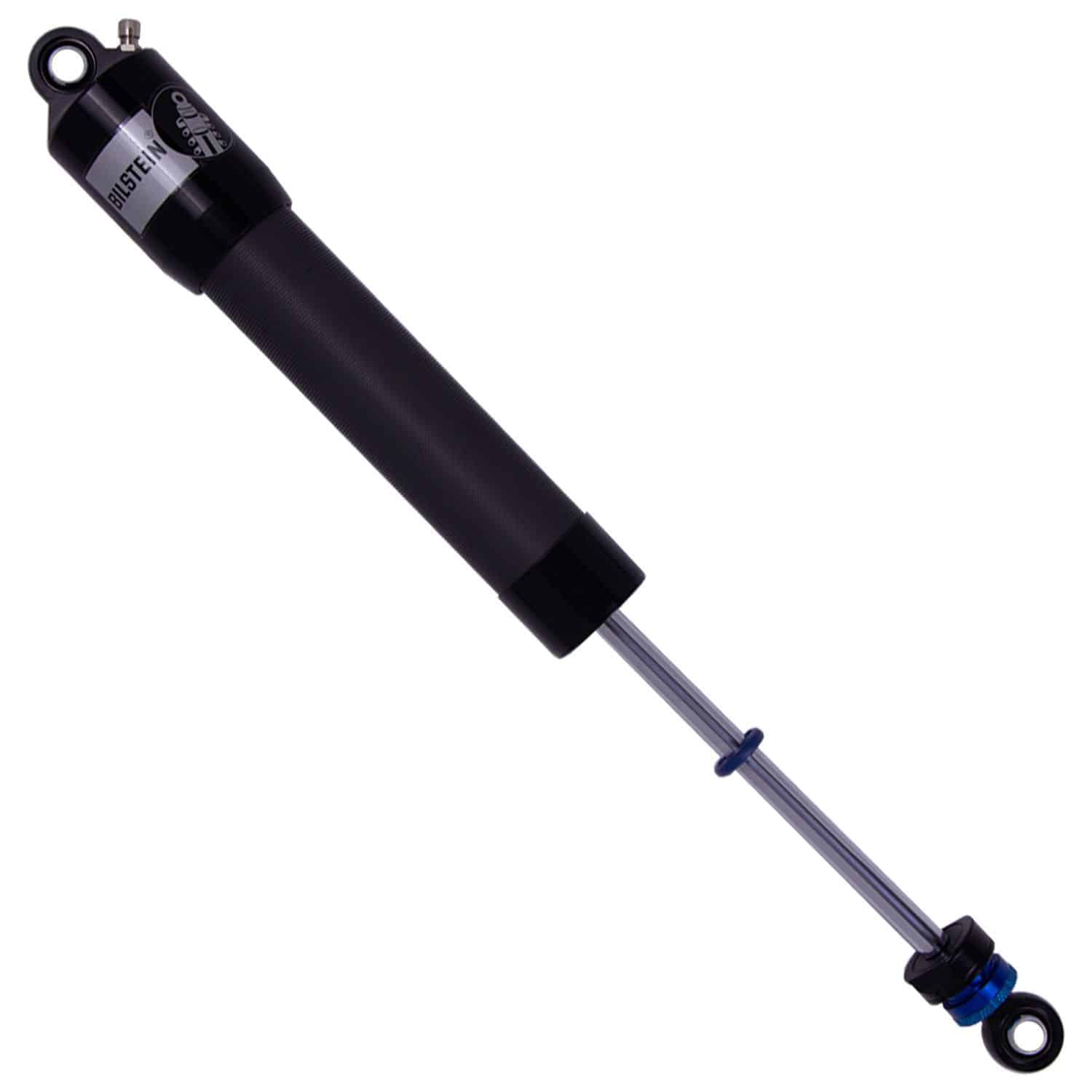

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Additional Attributes:
GTIN: 00651860923086
Adjustable Damping: Single Adjustable – Rebound
Body Design: Threaded Body Large Bulb Screw Top (Coilover)
Body Material: Aluminum
Boot Included: No
Collapsed Length (IN): 14.86
Collapsed Length (MM): 377.5
Extended Length (IN): 22.00
Extended Length (MM): 558.8
Finish: Clear Anodized
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Sold Separately
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Segment: Motorsports
Series: XVA Series
Spring Max Travel (IN): 7.14
Spring Seat Included: Yes
Upper Mount Type: 1/2in Heim
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 29.5000 x 3.5000 x 3.5000 inches
Weight: 7.0000 PG
USA SDS_Shock_Air Spring_V2_EN
