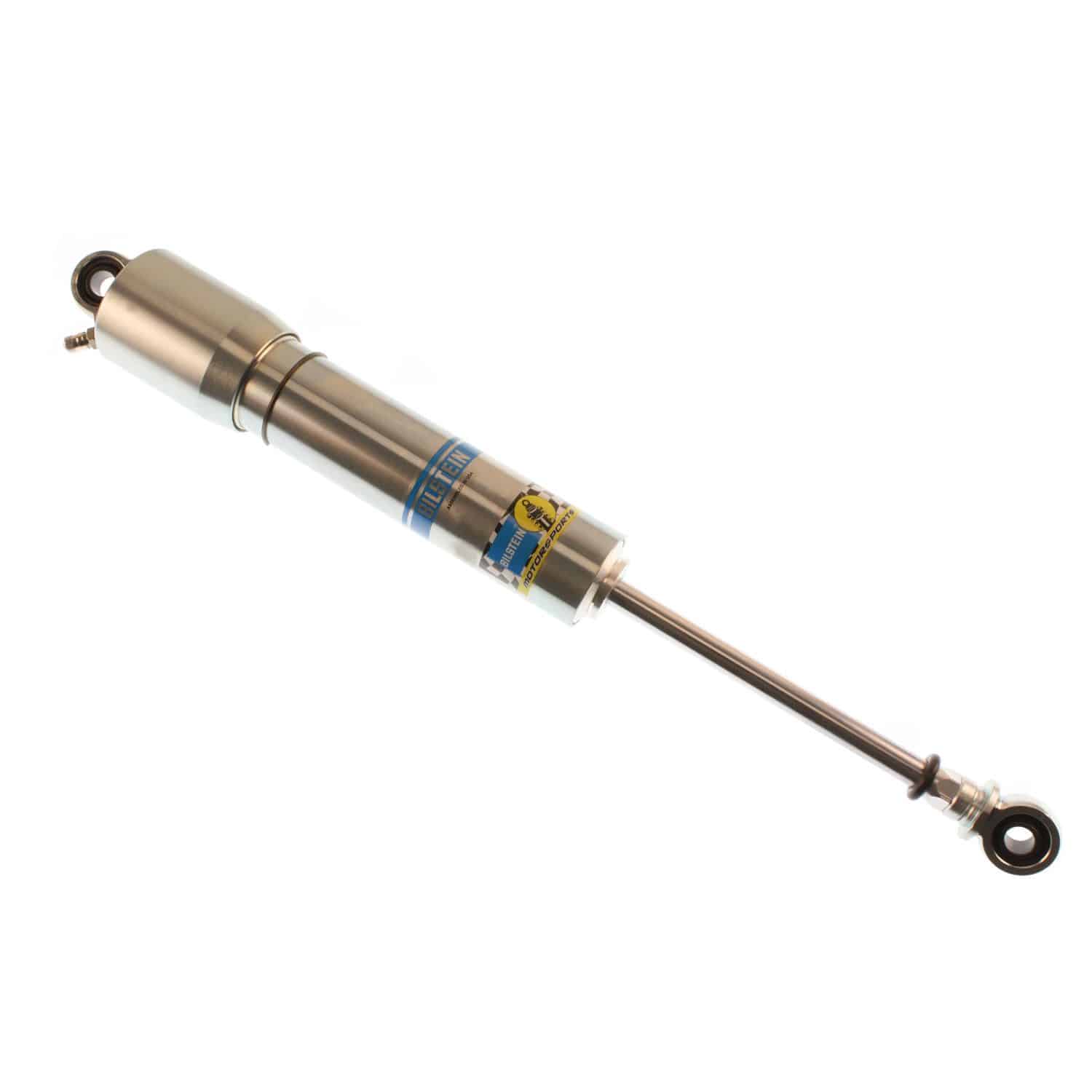

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Additional Attributes:
GTIN: 00651860727493
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 13.35
Collapsed Length (MM): 339.0
Compression @0.52m/s: 815
Extended Length (IN): 19.19
Extended Length (MM): 487.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 2340
Segment: Motorsports
Series: XVS-S Series
Spring Hardware: B4-BOA-0000117
Spring Max Travel (IN): 5.84
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Valving Identifier: ACV 8-2 COB
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Discontinued
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 2.9500 x 2.9500 inches
Weight: 4.8500 PG
