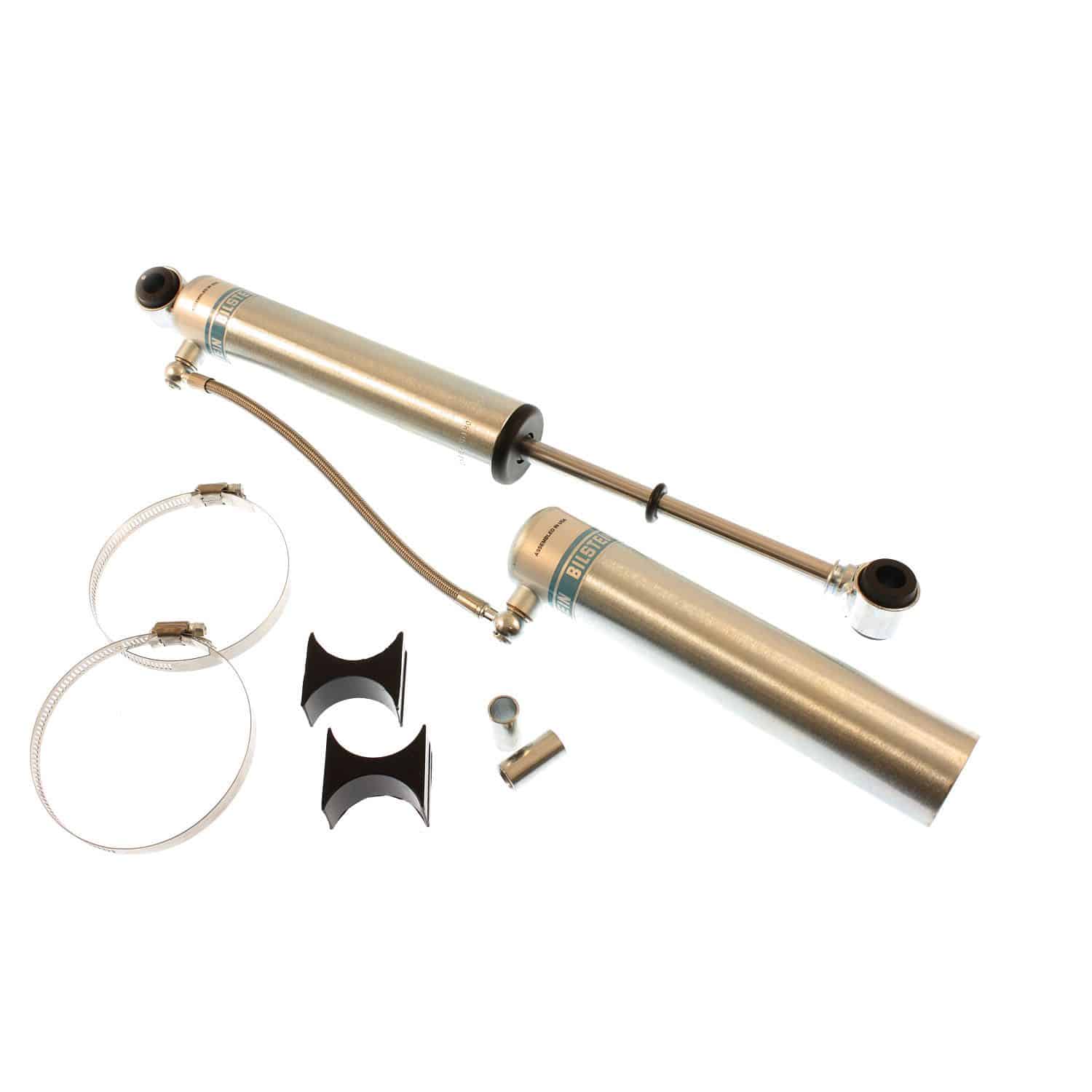

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.
Additional Attributes:
GTIN: 00651860664590
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 12.30
Collapsed Length (IN) Rounded: 12
Collapsed Length (MM): 312.4
Compression @0.52m/s: 575
Extended Length (IN): 19.72
Extended Length (IN) Rounded: 20
Extended Length (MM): 500.9
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: 11-176015
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1600
Reservoir: Yes
Segment: Light Truck
Series: B8 5165
Spring Max Travel (IN): 7.42
Spring Seat Included: No
Upper Mount Type: Eye 5/8in
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Superseded
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 4.1500 x 4.1500 inches
Weight: 4.6300 PG
