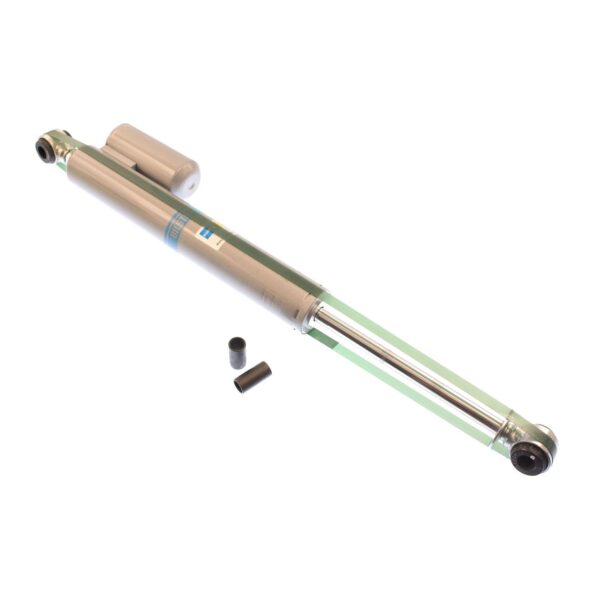

Bilstein Shock Absorbers

46mm Monotube Shock Absorber

Race inspired fixed CrossFlow reservoir
Adjustable shock mount allows unlimited reservoir positioning
Advanced design splut valving

Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.

Additional Attributes:

GTIN: 00651860466170
Body Design: 46mm ID Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 17.78
Collapsed Length (MM): 451.5
Compression @0.52m/s: 575
Extended Length (IN): 29.70
Extended Length (MM): 754.5
Finish: Platinum Powder coat
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1600
Reservoir: Yes
Segment: Light Truck
Series: B8 5150
Spring Max Travel (IN): 11.92
Spring Seat Included: No
Upper Mount Type: Eye 5/8in
