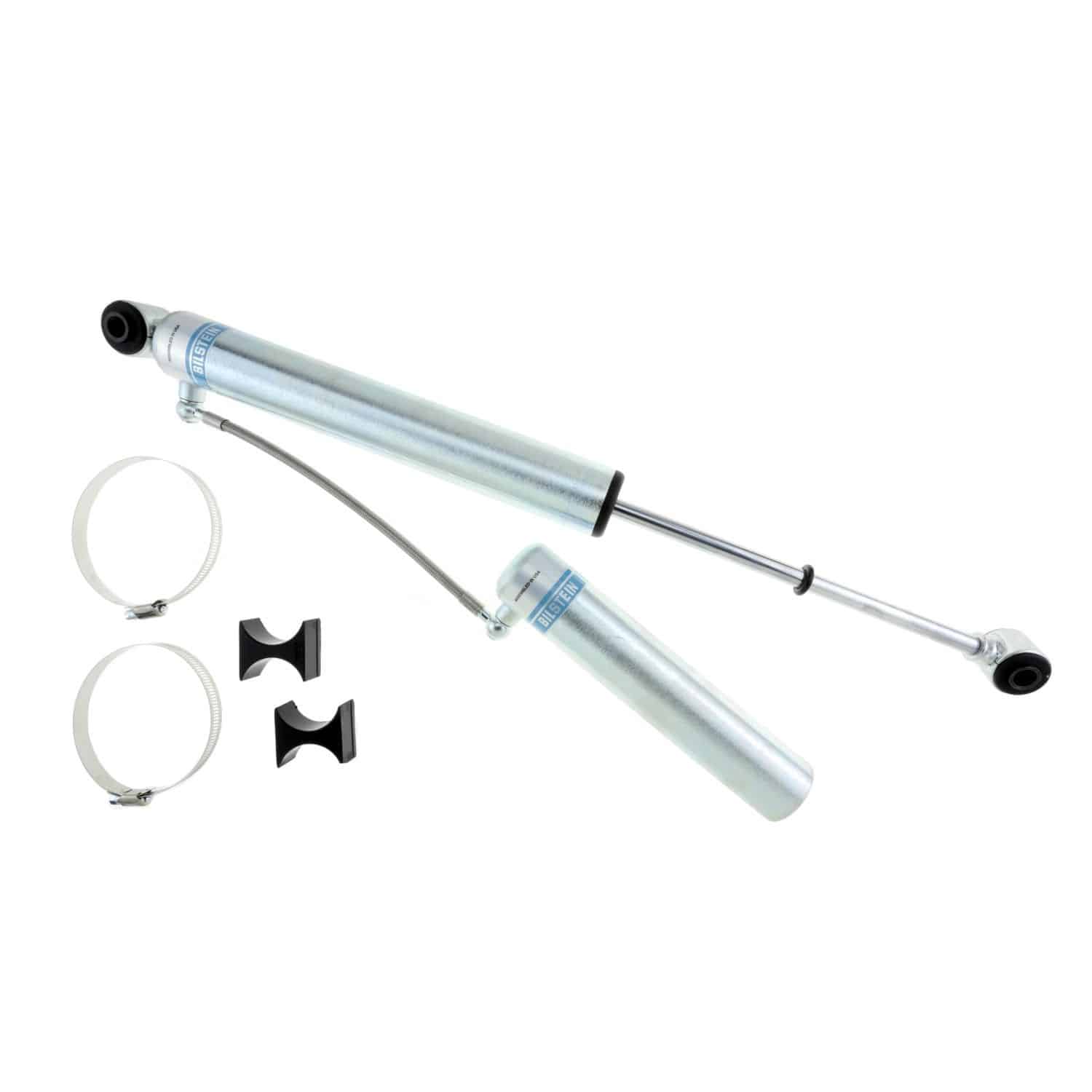

Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Additional Attributes:
GTIN: 00651860661957
Adjustable Damping: Non-Adjustable
Billet Reservoir Clamp Included: No
Body Design: Smooth Body (Non-Coilover)
Boot Included: No
Collapsed Length (IN): 16.14
Collapsed Length (MM): 410.0
Extended Length (IN): 27.17
Extended Length (MM): 690.0
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.4mm

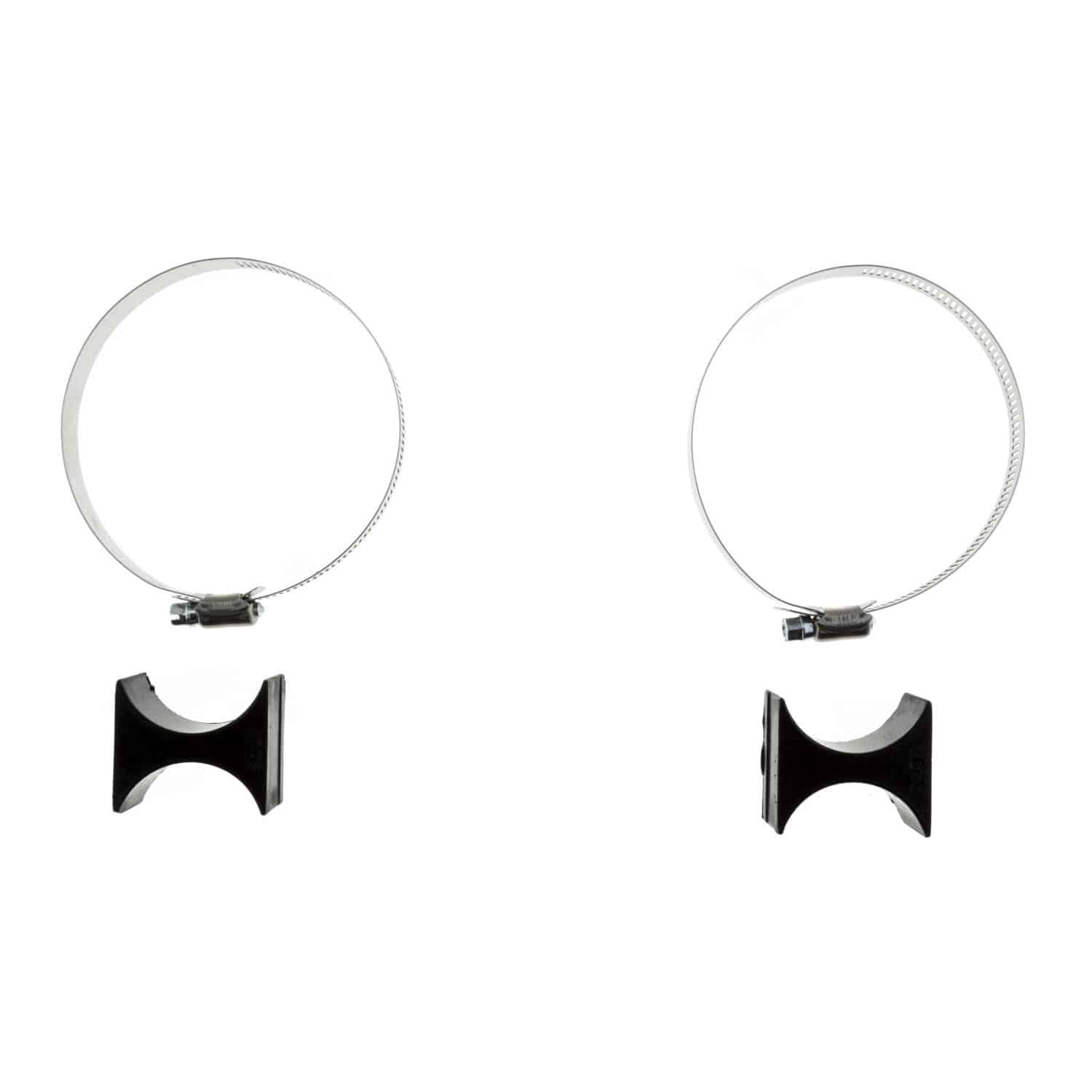

Optional Reservoir Clamp: 11-176015
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 – Short Label: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 5160 Classic
Spring Max Travel (IN): 11.03
Spring Seat Included: No
Upper Mount Type: Eye 14.4mm
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Superseded
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.8000 x 4.1500 x 4.1500 inches
Weight: 7.8500 PG
